Towing & Wiring Charts

Pin

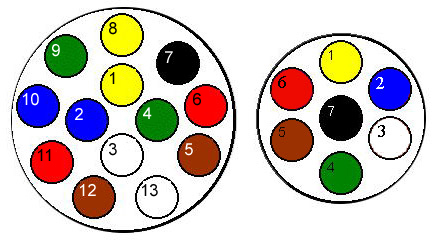

13 Pin Euro Socket

12N Plug Socket

1

Left Indicator

Left Indicator

2.

Fog Light

Fog Light

3

Earth (35 amp capacity)

Earth (35 amp capacity)

4.

Right Indicator

Right Indicator

5

Right Hand Rear Tail Light

Right Hand Rear Tail Light

6

Brake Lights

Brake Lights

7

Left Hand Rear Tail Light

Left Hand Rear Tail Light

8

Reverse



9

Auxiliary Power (Perm Live)



10

Ignition Live (via relay)



11

Earth (35amp Capacity)



12

Coding for Coupled Trailers



13

Earth (35amp Capacity)





Terminal

 Colour 12N 12S

1

 Yellow LH Indicator Reversing light

2

 Blue Rear fog lamp Battery Charging

3

 White Common return Common return

4

 Green RH Indicator Power supply

5

 Brown RH Side / Tail Sensing device

6

 Red Stop Lamp Refrigerator

7

 Black LH Side / Tail Spare
